VFD Maintenance and Reliability Guide

---

Without a baseline, you are guessing.

The operational baseline is the set of measurements recorded when the drive is newly commissioned, running under normal load, and performing correctly. It captures the drive's "healthy" signature at a known operating point so that every future measurement has something to compare against. A current draw that looks "high" means nothing without knowing what "normal" looks like for that specific drive on that specific application. A 62-degree inverter temperature tells you nothing until you know the drive ran at 44 degrees on day one. An 18-degree rise traced to a partially closed valve takes twenty minutes to find with a baseline and twenty hours without one.

A complete baseline captures seven categories of measurements at steady-state load. Electrical measurements cover output current on each phase, output voltages, DC bus voltage, output frequency, and current utilization as a percentage of drive rating. Thermal measurements cover inverter temperature, ambient at the drive, and motor bearing temperatures on both drive-end and non-drive-end. A thermal image of the panel interior, the motor, the junction box, and the input connections provides a visual reference that makes future hot spots immediately obvious. Vibration measurements at both motor bearings in three axes establish the mechanical baseline. Process performance measurements capture what the system is actually delivering. Drive internal diagnostics (run hours, thermal utilization, DC bus stability, software revision) complete the picture. A full parameter backup, saved in multiple locations, makes the configuration recoverable if anything goes wrong later.

The baseline is established at the end of commissioning, typically 24 to 48 hours after the system reaches thermal equilibrium under normal production conditions. If your facility skipped this step, establishing a retroactive baseline now is better than never doing it, though the numbers will reflect whatever condition the drive is currently in rather than its as-installed condition.

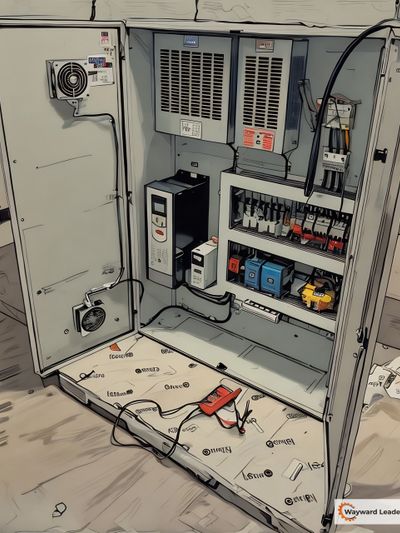

Store the baseline record in three tiers. Tier 1 is inside the drive panel door, for immediate access during troubleshooting. Tier 2 is the facility CMMS or maintenance records, for long-term archival and trending. Tier 3 is with the original commissioning package, for completeness. Three tiers exist because each one survives different failure modes. Panel doors get replaced. CMMS systems get migrated. Binders get lost. Redundancy is the point.

The recurring work that keeps drives healthy comes down to four categories: cooling, connections, visual inspection, and control system checks. The tasks are not complicated. The discipline to do them on schedule is what separates drives that hit their service life from drives that do not.

Filter cleaning is the single highest-impact maintenance task for VFDs. A dirty filter restricts airflow, which raises inverter temperature, which accelerates capacitor aging, which eventually trips the drive. In dusty environments (textile mills, woodworking shops, grain handling, outdoor installations), filters may need attention at one month. In clean indoor environments, quarterly is often adequate. Start with a one-month inspection after commissioning, observe the contamination level, and set the interval based on what you see.

Cooling fans have a typical service life of 3 to 5 years in normal industrial environments, and less in harsh conditions. Fan degradation announces itself through increased bearing noise and reduced airflow well before outright failure. A failed fan does not immediately destroy the drive, but the resulting temperature rise accelerates capacitor aging and increases thermal fault risk. Listen for fan noise at six months, and include fan inspection in every annual maintenance cycle. Keep a replacement fan on the spare parts shelf.

Heat sink cleaning matters more than people think. Dust accumulation on heat sink fins is an insulating layer that degrades thermal transfer. A heat sink that looks acceptable to the eye may have already lost 10% to 20% of its cooling capacity to a dust film. Annual cleaning with compressed air (with the drive locked out and de-energized) restores the capacity that was there on day one.

Retorque every power connection at three months. New connections settle during initial thermal cycling as conductors heat and cool repeatedly under load. A connection torqued correctly at installation can loosen enough in the first ninety days to create a measurable temperature rise, which accelerates the loosening. Most manufacturer installation manuals specify a three-month retorque. Check input L1/L2/L3, output T1/T2/T3, and every ground connection. Use a calibrated torque wrench, not a feel.

Visual inspections catch what the meters miss: discoloration from overheating, dust accumulation beyond the filter, moisture, corrosion, and physical damage. Check quarterly. Control system checks verify communication links, confirm parameter backup files still exist and are current, and note firmware status. Knowing what firmware version is running now means you can recognize when something has changed later.

The first-year rhythm is simple: filter, connection retorque, and baseline comparison at three months; fan inspection, thermal imaging comparison, and vibration comparison at six months; comprehensive baseline comparison, parameter verification, and spare parts check at twelve months. Three maintenance events in the first year, roughly three hours of total effort. That time investment protects the drive for the next decade.

The drive is a sensor. It is continuously measuring its own health and the behavior of the motor and load it controls, and it stores the record of what it sees.

Every modern VFD logs internal temperature, DC bus voltage, output current on each phase, run hours, fault history with timestamps, and typically output power and frequency. On networked drives, this data can be pulled continuously into a SCADA or historian system and trended over time. Extracting and trending this data reveals degradation before it becomes a fault.

There is a significant difference between checking a value and tracking a trend. A single inverter temperature reading of 58 degrees means little. A trend showing that same inverter temperature climbing 2 degrees per quarter at the same load and the same ambient conditions is telling you something specific: the cooling system is degrading, the load has changed, or some other condition is accumulating. Changes that are invisible in isolated readings become obvious in a trend line.

Two trends are especially diagnostic. Output current trended against the baseline reveals mechanical condition on the driven equipment. A motor current that has been gradually rising by 0.5% per week for three months points toward bearing wear, belt slippage, product buildup on a conveyor, or a pump impeller beginning to foul. A sudden step change points toward a discrete event: a valve position change, a process condition shift, a mechanical binding. The fault code tells you the symptom. The trend tells you the cause.

DC bus voltage ripple trended over time is the early warning for capacitor aging. As electrolytic capacitors lose capacitance, bus voltage ripple increases. A drive that had 5V peak-to-peak ripple at commissioning and now shows 15V peak-to-peak ripple is telling you the capacitors are entering the wear-out phase, even if no fault has appeared yet.

The ORCA-VFD research that underpins this approach reduces 41 raw drive parameters to eight universal health signals, called the Core-8: inverter temperature, output current magnitude, DC bus voltage, output power, output frequency, torque estimate, voltage magnitude, and power factor. Field data analysis shows that temperature and current alone account for roughly 78% of all degradation signatures. These measurements are already collected inside every modern drive. No additional sensors are needed. The challenge is not data acquisition. It is knowing how to interpret what the drive has been trying to tell you.

Drives sized with adequate thermal and current margin make this monitoring actually work. A drive running at 95% utilization cannot reveal a gradual 5% current increase because it is already at its ceiling. A drive running at 70% utilization shows the same 5% increase clearly because the measurement space has room for the change to be visible. This is one of the quiet benefits of correct sizing that does not show up until the drive is years into service.

Thermal imaging is one of the most valuable and most underused tools in VFD maintenance.

A thermal scan during loaded, steady-state operation reveals what visual inspection cannot: hot connections, uneven cooling, blocked internal airflow, thermal gradients across heat sinks, and enclosure hot zones. A loose input fuse connection that is 35 degrees above the other two phases stands out immediately in a thermal image and is invisible to the eye. A heat sink whose lower fins are running 12 degrees hotter than the upper fins tells you airflow is obstructed. A motor junction box that is 20 degrees warmer than the motor frame tells you a connection inside is degrading.

The trick with thermal imaging is context. A thermal scan of a drive at rest in a cool morning tells you almost nothing. The diagnostic value comes from steady-state load. Let the drive run at its normal operating point until thermal equilibrium is reached (typically 30 to 60 minutes under steady load), then scan. And compare against the baseline thermal image captured during commissioning. A connection that was 35 degrees at baseline and is now 85 degrees stands out in a side-by-side comparison even without sophisticated analysis.

Capture thermal images of the drive panel interior (with the door open if safe to do so while energized, or through an IR window if installed), the drive's heat sink or heat exchanger, the motor frame on both ends, the motor junction box and cable terminations, and the input power connections including the disconnect, fuses, and circuit breaker. Label every image with the date, time, ambient temperature, motor speed, and load condition at the time of capture. Without those labels, you have a picture. With them, you have a data point.

Connection quality and enclosure design directly determine what you will see in the thermal image. A panel that was built correctly, with adequate clearances, appropriate cooling, and properly torqued connections (covered in our VFD Installation Guide) will show a uniform thermal profile with no hot spots. A panel that cut corners in any of those areas will show hot spots exactly where the corners were cut. Thermal imaging does not lie.

Budget for a thermal scan annually at minimum. Add one within thirty days of any major change (replaced drive, reworked connections, modified enclosure, changed load profile) so you have a current reference point.

DC bus capacitors are the life-limiting component in most VFDs. Understanding how they age determines how long the drive will actually last.

Electrolytic capacitors have a rated service life typically between 7 and 15 years, depending on operating temperature. The aging mechanism is well understood: the liquid electrolyte gradually evaporates through the capacitor's seal, which reduces capacitance and increases equivalent series resistance (ESR). Higher operating temperatures accelerate evaporation following the Arrhenius relationship. A drive running 10 degrees hotter than its design point ages its capacitors at roughly twice the rate.

The degradation is gradual and almost invisible until performance shifts. You will not see a sudden capacitor failure. You will see an increasing sensitivity to power line transients, reduced ride-through capability during brief voltage sags, and eventually intermittent DC bus undervoltage or overvoltage faults at full load. The drive will still run for years while this is happening. It will just run with less and less margin against the electrical environment around it.

The three things to watch for:

DC bus voltage ripple. The most definitive early indicator. A baseline ripple measurement at commissioning, compared to an annual measurement under the same operating conditions, tells you exactly where the capacitors are in their service life. Most modern drives display or log bus voltage ripple as a diagnostic parameter. A doubling of ripple over several years is normal aging. A tripling or more signals the capacitors are approaching end of life.

Undervoltage faults at full load. Intermittent undervoltage trips that correlate with utility voltage sags, with full-load operation, or with the hottest parts of the day can be symptoms of capacitor aging rather than a supply problem. Our VFD Troubleshooting Guide covers how to distinguish these symptoms from the more common causes of undervoltage (loose connections, line reactor voltage drop, actual utility sags).

Visual inspection of older drives. On drives nearing the end of their rated capacitor life (say, ten years in), schedule a visual inspection of the DC bus capacitors during a planned outage. Bulging tops, leaking electrolyte, or rust on the capacitor casing are unambiguous signs that replacement is overdue. Do not energize a drive with visually failed capacitors.

The replace-capacitors-or-replace-drive decision is often economic rather than technical. On smaller drives (below roughly 100 HP), the cost of a qualified capacitor replacement plus associated labor and reliability risk often approaches or exceeds the cost of a new drive. On larger drives, factory refurbishment or field capacitor replacement by a qualified service provider is typically the right answer. ABB and other major manufacturers offer factory refurbishment programs specifically for aged drives. If the drive has been a reliable performer otherwise, refurbishment extends service life by another full capacitor cycle.

One more consideration: spare drives sitting on a shelf need capacitor reforming before service. Capacitor electrolyte loses its oxide layer over time in an unpowered state. A spare drive that has been sitting for more than a year should be powered up for at least an hour to reform the capacitors before it is put into production service.

Everything described in this guide is only useful if it survives the next personnel turnover.

Physical binders get lost. They get wet. They get borrowed and not returned. They get thrown away during panel refurbishment. The lead maintenance technician who remembers why parameter 99.06 is set to 230 VAC instead of 460 VAC eventually retires, and institutional memory walks out the door with them. The drive keeps running. But the knowledge about how to keep it running does not.

The CMMS (computerized maintenance management system) is the repository of record. The commissioning documentation package feeds directly into the CMMS asset record, and from that point forward, the CMMS becomes the single source of truth about the drive's configuration, history, and care.

At minimum, attach the following to every VFD asset record in the CMMS. Scan the commissioning documents (pre-energization checklist, power-up record, load testing record, safety verification record) and attach them to the asset. Upload the parameter backup file, and update it every time parameters change. Enter the baseline measurements as the initial condition data point, so future readings can be trended against them. Create scheduled maintenance work orders for the three-month, six-month, and annual tasks, with due dates that actually trigger. Link thermal images to the asset, labeled by date and operating condition. Attach the annotated parameter list that explains why each non-default parameter was set the way it was.

That last item is the one most often neglected and the one most valuable. A raw parameter list tells the next technician what the values are. An annotated parameter list tells them why. Without the annotation, a technician looking at a 230 VAC motor voltage setting on a 480 VAC drive may "correct" it to 460 VAC and create an entirely new problem. With the annotation ("Motor is connected on 230 VAC tap per field wiring, dual-voltage 230/460 VAC motor"), the setting is defended and the mistake is prevented.

If the facility does not have a CMMS, a structured digital folder on the facility network drive, organized by equipment tag number with clearly labeled subfolders, is the minimum acceptable alternative. This approach is inferior to a real CMMS because it lacks scheduled work order generation and trending, but it is vastly better than a physical binder alone because it survives the loss of any single person or any single piece of paper.

The three-tier storage hierarchy applies here too: panel door for immediate access during troubleshooting, CMMS or network drive for long-term survival and trending, and the original commissioning package for completeness. Redundancy across the tiers is the point. Each tier protects against a different failure mode.

Reliability is not just about hardware or maintenance schedules. It depends on the people who interpret the data, make the decisions, and do the work.

A thermal image is only useful if someone knows what they are looking at. A fault history is only useful if someone can read it. A rising current trend is only useful if someone recognizes the significance. A baseline record is only useful if someone understands temperature rise above ambient is a better indicator than absolute temperature. None of these capabilities comes built-in with a new hire. All of them can be taught.

The connection between maintenance quality and training investment is direct. Facilities that invest in their people's VFD knowledge have drives that live longer, production that runs more reliably, and fewer 2 a.m. phone calls. Our VFD Training Guide covers how to build that competency across a maintenance team, including how to read baseline records, how to interpret thermal images, how to respond to faults systematically, and how to know when to call for outside help.

Long-term VFD reliability is the result of a chain of good decisions. Correct sizing creates the thermal and electrical margin that makes everything else possible. Quality installation (the right cable, the right shield termination, the right grounding) protects the drive from the environment it lives in. Disciplined commissioning captures the baseline that becomes the reference for every future measurement. Sustained maintenance by trained people keeps the drive running inside the envelope its designers intended.

Each link in that chain is earned, not granted. Skip the sizing calculation and you spend the next decade managing thermal faults. Skip the baseline and you spend the next decade guessing at what "normal" looks like. Skip the training and you spend the next decade with drives that only work when the one person who understands them is on site. Get every link right and a properly installed drive delivers 15 to 20 years of reliable service.

The drive is telling you how it is doing, continuously. Your job as the reliability professional responsible for that drive is to read what it is saying, recognize when the trends are slipping, and intervene before a trend becomes a fault.
